Fine Side - FS series
Fine Side – FS Series
The Fine Side blade features an offset cutting edge, positioned slightly to the left or right rather than centered on the blade body. This unique design improves cut straightness and smoothness, making it ideal for applications that demand high precision and clean edges.
It is especially suitable for products such as 3C device packaging, notepads, cushioning materials, precision gaskets, and other items requiring accurate, high-quality cuts.
FS Side Bevel Series Advantages
-
Tip position and angle are refined through years of market experience to achieve maximum durability and clean, straight cuts. -
Available in various thicknesses to meet diverse market needs. -

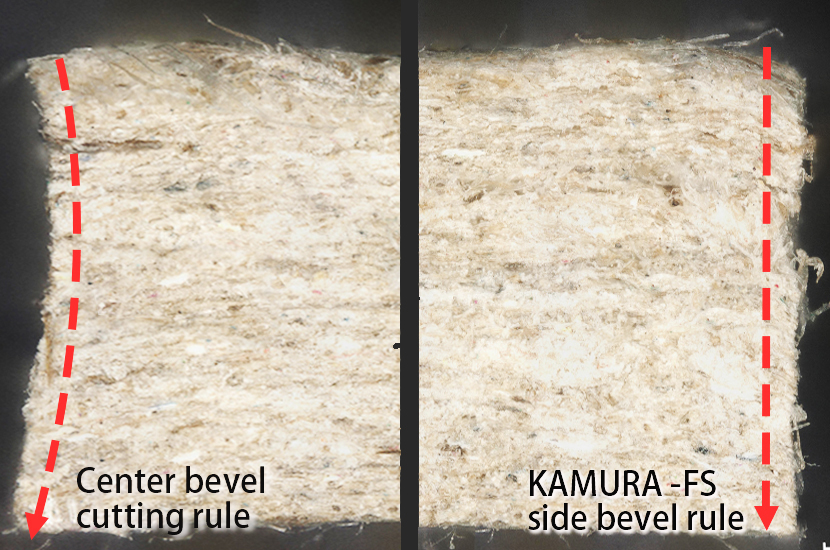

When cutting greyboard, side-beveled blades produce noticeably straighter edges under 60x magnification compared to center-beveled blades.
Cutting Process Video
This video shows the side bevel blade cutting sticky notes in slow motion, allowing you to clearly observe the cutting details—especially the difference in edge straightness on both sides of the cut.
Because of its unique angled design, the side bevel blade cuts differently compared to a standard center-aligned blade, resulting in a distinctive cut quality. The video highlights the blade’s full capabilities, which can be adapted to meet various material cutting needs.
Product Specifications
| Thickness mm |
Height mm |
Hardness (body) HV |
Hardness (Edge) HV |
Blade Tip Shape | Angle ∠ |
|---|---|---|---|---|---|
| 0.71 | 23.6 | 340 | 600 | Side Single Bevel | 42 |
| 1.06 | 23.8 | 380 | 640 | Side Double Bevel | 51/52 |
| * | * | 400 | 670 | * | * |
| * | * | 450 | 700 | * | * |
